17TS740B, M Ch= A2007
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 271433
Picture from service manual.

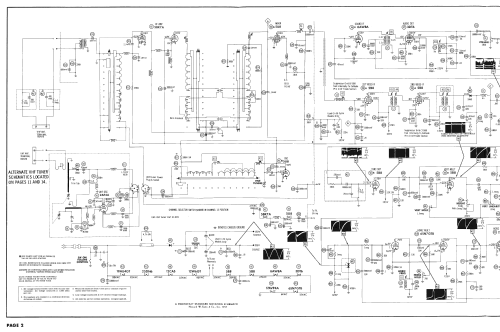

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 17TS740B, M Ch= A2007 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Hallicrafter model 17TS740B,M is a 17 or 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis A2007 and picture tube 17AVP4 or 21ALP4A.
Selenium rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 348 Folder 18-S date -1957)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 385 Folder 5 dated 1-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 926 models, 476 with images and 526 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
