21K200B Ch= B1400D

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 303584

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6BZ7 6J6 6CB6 6CB6 6CB6 6CB6 12BY7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6BE6 or 6CS6 6SN7GT 6S4 6AQ7 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 5U4G 21ZP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21K200B Ch= B1400D - Hallicrafters, The; Chicago,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

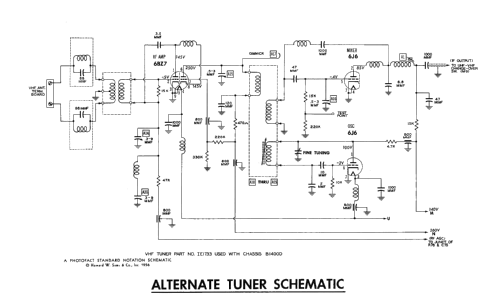

• Hallicrafters model 21K200B is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis B1400D, VHF tuner 1E1733 and picture tube 21ZP4B.

• Literature/Schematics (1)

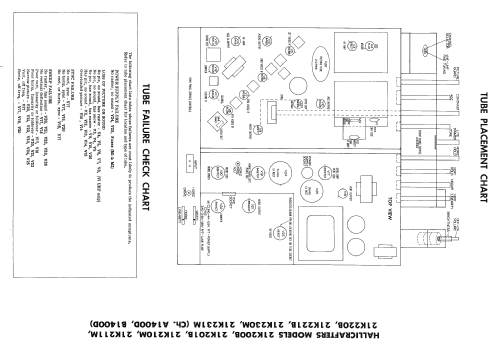

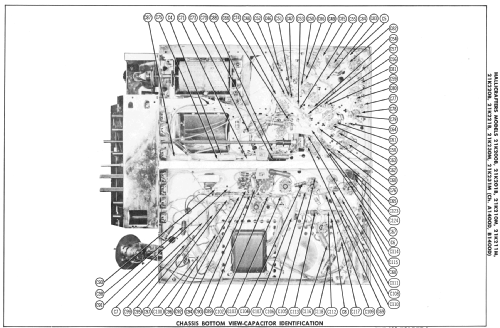

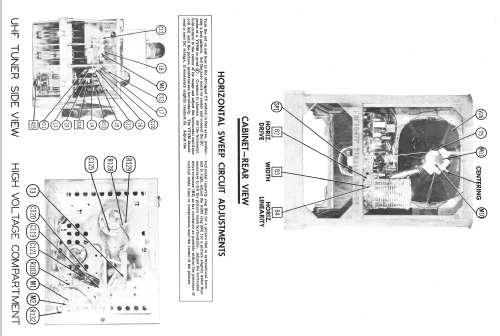

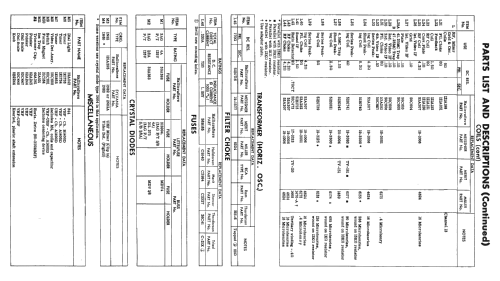

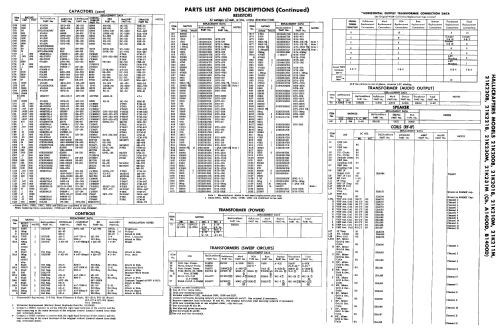

• Photofact Folder, Howard W. SAMS (Set 322 Folder 8 dated 7-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
