• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 304353

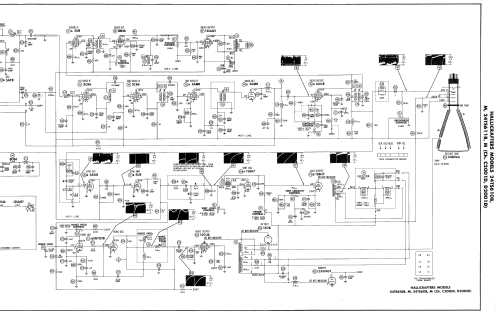

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BZ7 6U8 6AF4 3CB6 3CB6 5AM8 6AU8 5U8 3BN6 12L6GT 12BH7A 6SN7GTB 12CU6 12AX4GT 1X2B 24DP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 24TS611B Ch= D2001D - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Hallicrafters model 24TS611B is a 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis D2001D, VHF-UHF tuner ID2283 and picture tube 24DP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 323 Folder 7 Dated 7-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 926 models, 476 with images and 526 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
