• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81578

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BD6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 3 inch = 7.6 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 51C2 - Hallicrafters, The; Chicago,

• Shape

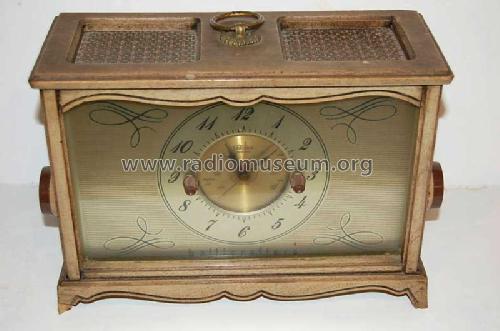

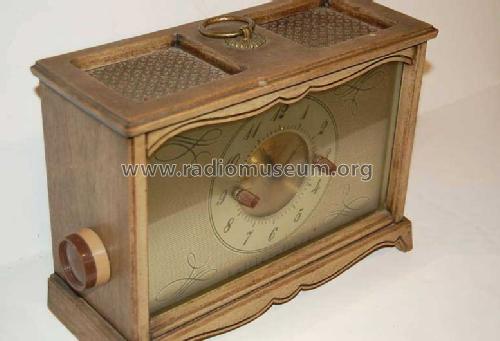

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• Large, easy to read front clock dial and timed appliance outlet. Cabinet color is Antique Walnut.

• Source of data
• Radios by hallicrafters

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-59, Set 450, Servicer)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
