• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43840

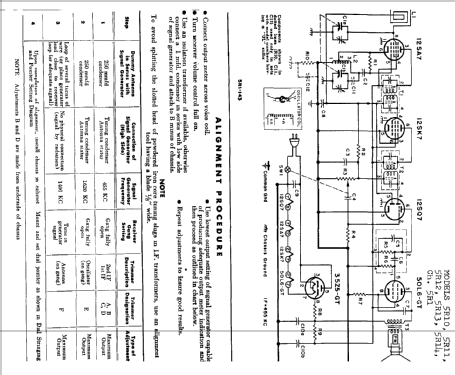

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5R14 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.75 x 5.875 x 5.1875 inch / 273 x 149 x 132 mm

• Notes

• The 5R14 is an AC/DC operated 5 tube BC band receiver. The BC band frequency tuning range is 535 - 1630kHz.

  The following models use the same chassis and are the same family of radio's with different cabinet colors:

  Model	Cabinet Color
  5R11	Not Known
  5R12	Not Known
  5R13	Not Known
  5R14	Not Known
  5R18	Not Known
  5R19	Not Known
  5R20	Not Known
  5R21	Not Known

  These same models were also available from Montgomery Ward sold with the following catalog numbers: Pebble (Order= 62 AP 1601 M), White (Order= 62 AP 1600 M), Citron (Order= 62 AP 1602 M), Flame (Order= 62 AP 1603 M), Spruce (Order= 62 AP 1604 M).

  The 5R14 is an AC/DC operated 5 tube BC band receiver. The BC band frequency tuning range is 535 - 1630kHz. Equipped with loop antenna.

  The following models use the same chassis and are the same family of radio's with different cabinet colors:

  Model	Cabinet Color
  5R11	Not Known
  5R12	Not Known
  5R13	Not Known
  5R14	Not Known
  5R18	Not Known
  5R19	Not Known
  5R20	Not Known
  5R21	Not Known

  These same models were also available from Montgomery Ward sold with the following catalog numbers: Pebble (Order= 62 AP 1601 M), White (Order= 62 AP 1600 M), Citron (Order= 62 AP 1602 M), Flame (Order= 62 AP 1603 M), Spruce (Order= 62 AP 1604 M).

• Price in first year of sale
• 24.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 11, 1951

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Rider's Perpetual, Volume 22 = covering 1951

• Literature/Schematics (2)
• Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1952, page 598 & 599.)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 129, folder 7, dated 4-51)

• Other Models

• Here you find 926 models, 476 with images and 526 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
