• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82519

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 611 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 14 x 8 x 7 inch / 356 x 203 x 178 mm

• Notes
• Difference between 611 and 612 is the color of the case otherwise electronically and cosmetically are the same models .
  4" x 6" PM elliptical speaker.

• Source of data
• Radios by hallicrafters

• Literature/Schematics (1)

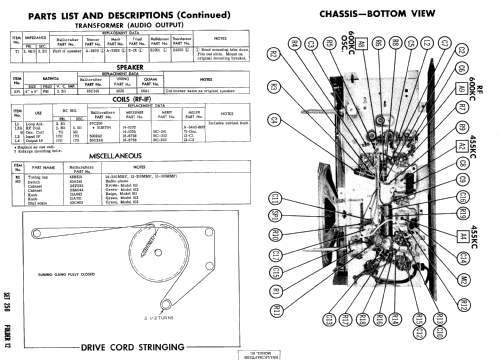

• Photofact Folder, Howard W. SAMS (Date 9-54, Set 250, Folder 12)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
