• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82532

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

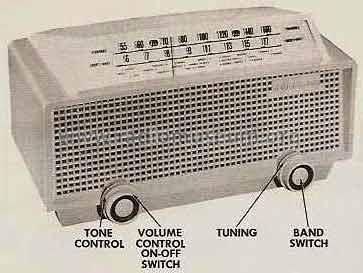

• Model: 622 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Difference between 621 and 622 is the color of the case otherwise electronically and cosmetically are the same models, same as the 611-612 except the 621-622 has two bands.

• Source of data
• Radios by hallicrafters

• Author
• Model page created by a member from D. See "Data change" for further contributors.
