- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 339970

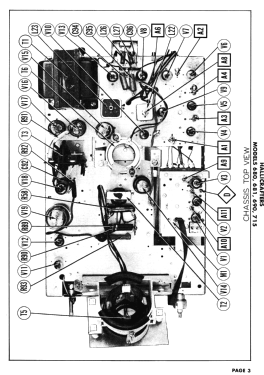

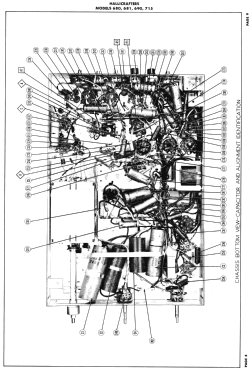

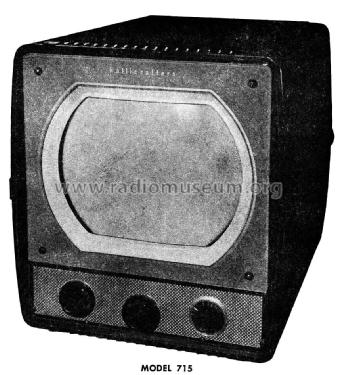

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BC5 or 6AG5 6BC5 or 6AG5 6J6 6AU6 6AU6 6AU6 12AU7 12AU7 6AU6 6AL5 6AV5 6AQ5 12AU7 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1X2 5V4G 12RP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 715 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hallicrafters model 715 is a 12” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF-tuner 1X945 and picture tube 12RP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 113, Folder 3 dated 11-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
