- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1950–1955
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 81153
Ebay Nr. 120296850303 Bild bearbeitet.
Ebay Nr. 120296850303 Bild bearbeitet.
Ebay Nr. 120296850303 Bild bearbeitet.
Ebay Nr. 120296850303 Bild bearbeitet.
Ebay Nr. 120296850303 Bild bearbeitet.
RUN2, feb. 5. 1953

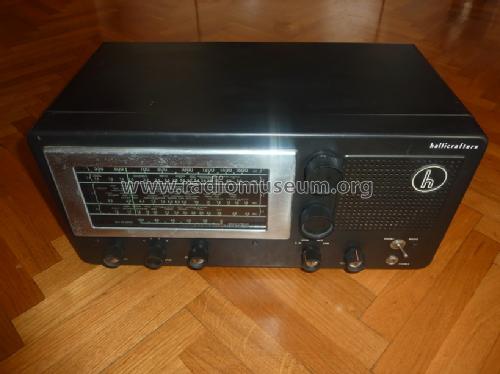

Hallicrafters 8R40 in 3/4 angle view.
8R40 chassis showing original capacitors

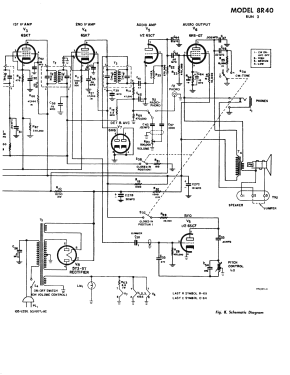

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 8R40 [RUN 2] - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 18.5 x 8.875 x 9.5 inch / 470 x 225 x 241 mm
- Notes
- Band spread, variable pitch BFO, RF Gain control
- Price in first year of sale
- 90.00 $
- Source of data
- Radios by hallicrafters
- Mentioned in
- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1952, page 605.)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
