CB Mobile Transceiver CB-12
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1965
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 83545

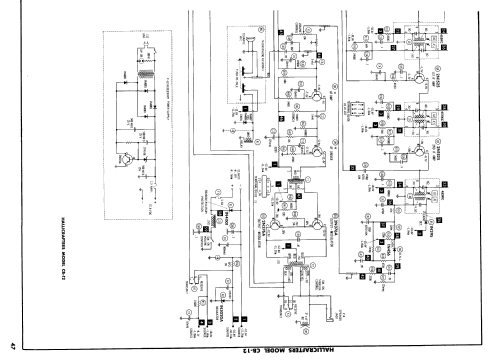

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: CB Mobile Transceiver CB-12 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- 10 diodes, crystal controlled 12 channel transceiver in the 27 MHz "Citizens' band" with 5 watts input, features squelch control and PA-switch for paging. In 1967 Hallicrafters had the contract to build CB radios for Sears, the unit is identical with the Sears Silvertone model 6552, only knobs and trims are different.
- Source of data
- Radios by hallicrafters
- Author
- Model page created by a member from D. See "Data change" for further contributors.
