- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1944 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 329815
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 5Y3
- Wave bands
- - without
- Details
- Power Supply (not only Batt.El.)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: EP-298 - Hallicrafters, The; Chicago,
- Shape
- Chassis only or for «building in»
- Notes
-

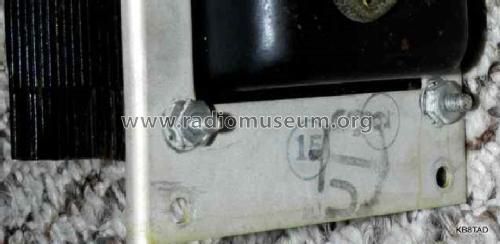

The EP-298 conversion AC power supply was built by Hallicrafters for the Navy as evidenced by the Navy acceptance stamp on the bottom of the power supply chassis. Was designed to power the US Army Air Force aircraft liaison receiver BC-348 in place of the dynamotor shelf.
- Author
- Model page created by Rich Post. See "Data change" for further contributors.
