- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 43870
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- 24B856
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- AC/DC-set / 105-125 / 210-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: EX-103 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Notes

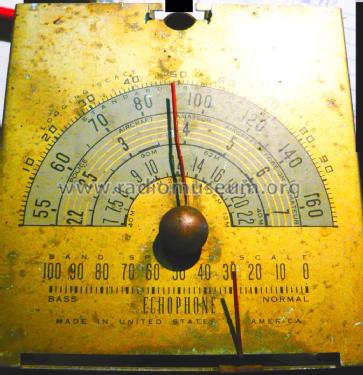

- Same as EX-102 except wooden cabinet, with Ballast Tube 24B856 which permit operation from 210-250Volt AC/DC as well as from 105-125Volt AC/DC Power Source . Dial lamp: *47 (6,3V/0,15A).
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-49, Set 64, Folder 5)
