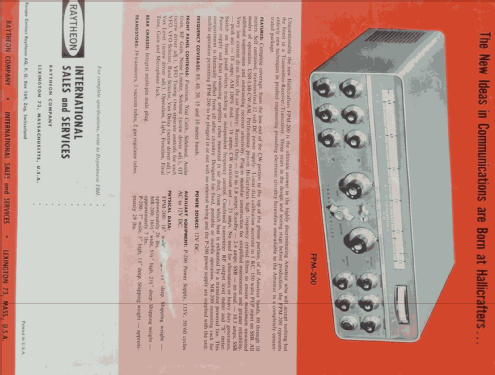

FPM-200

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 80643

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • 41
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 117/12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FPM-200 - Hallicrafters, The; Chicago,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 7 x 5 x 11 inch / 178 x 127 x 279 mm
  • Notes
  • 49 diodes, covers 80 through 10 meter and receiving WWV at 10 MHz, power output 70-100 watts P.E.P. SSB, 60-90 watts CW, 15-20 watts AM, features two seperate VFO's, 100 KHz crystal calibrator, crystal lattice filter, combinied RF/S-meter, CW side-tone, VOX, ANL, built in cooling fan, the power source is 12 volt DC negative ground or 117 volts AC with the seperate P-200 AC power supply which puts out 12 volt DC at 20 amperes and contains the receivers speaker, the unit comes with the P-200 power supply and the MR-200 mobile mounting kit, these units were mostly experimental with a limited production run of less than 200 units.
  • Net weight (2.2 lb = 1 kg)
  • 11.1 kg / 24 lb 7.2 oz (24.449 lb)
  • Price in first year of sale
  • 2,660.00 $
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
