Hallicrafters 17810M
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 351636
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes

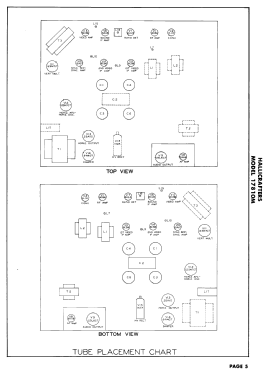

- 6CB6 6J6 6CB6 6CB6 6CB6 6AU6 6AL5 6AV6 or 6SQ7 25L6GT 12AU7 12SN7GT or 12BH7 12SN7GT 25AV5 6W4GT 1X2A 17BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hallicrafters 17810M - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hallicrafters model 17810M is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.

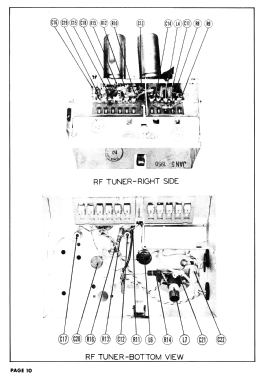

Equipped with VHF tuner 1D1049 and picture tube 17BP4.

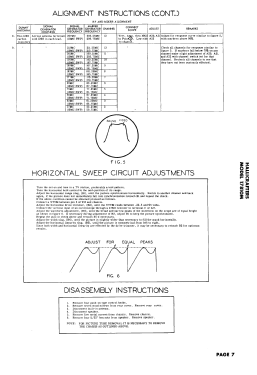

- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 152, folder 9, dated 11-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
