• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1965

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 80451

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AT7 12AT7 6EA8 6AH6 12BY7A 6HF5 6BA6 6EA8 0A2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

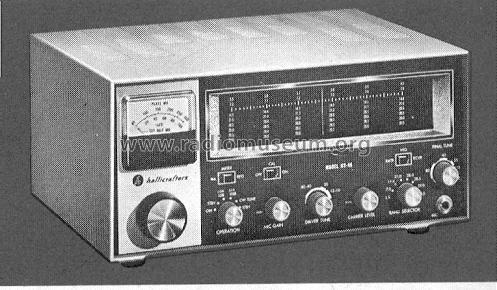

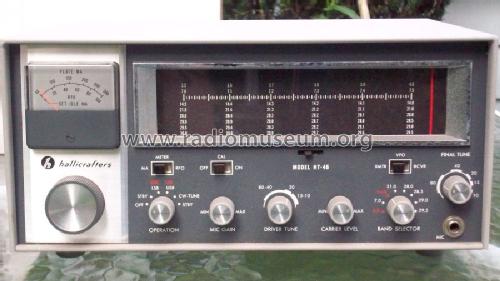

• Model: HT-46 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 13.1 x 5.9 x 11 inch / 333 x 150 x 279 mm

• Notes
• Coverage 80-10 meters, output 70-100 watts, features full metering, AALC, PTT, transceiver operation when used with the SX-146 receiver, 6 pole crystal lattice SSB filter and VOX with the optional HA-16 VOX unit installed.

• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• Price in first year of sale
• 295.00 $

• Source of data
• Radios by hallicrafters

• Mentioned in
• The Hallicrafters Story 1933-1975, de Henseler

• Author
• Model page created by a member from D. See "Data change" for further contributors.
