• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1962/1963

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 83445

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org
• Model: Little Fone CB-4 - Hallicrafters, The; Chicago,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 3 x 8 x 2 inch / 76 x 203 x 51 mm

• Notes
• Crystal controlled single channel 27 MHz band "Citizens' Band" handheld transceiver, 100 milliwatt input, any of the 23 available channels may be used with the proper plug-in crystal, features built in speaker, telescoping whip antenna.

• Price in first year of sale
• 90.00 $

• Source of data
• Radios by hallicrafters

• Literature/Schematics (3)

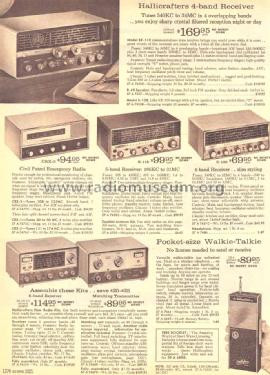

• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1276.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1248. (Order=57H 7464))

• Author
• Model page created by a member from D. See "Data change" for further contributors.
