• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1944

• Category
• Military Receiver

• Radiomuseum.org ID
• 86475

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6AB7 6SK7 6SK7 6SA7 6SA7 6SK7 6SK7 6H6 6J5 6SQ7 6V6 VR150

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Other, details in remarks or not known. / 28 Volt

• Material
• Metal case

• from Radiomuseum.org

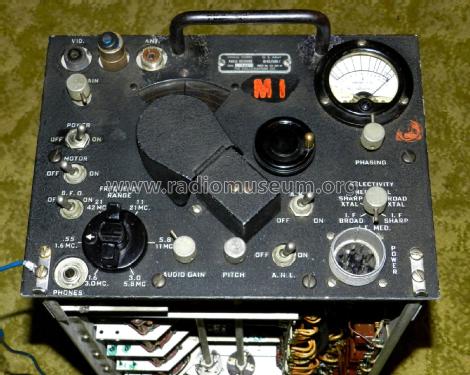

• Model: R-45/ARR-7 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Coverage: 0.550 - 42 MHz in 6 bands, AM or CW mode, features motor driven tuning with auto reverse and adjustable stops, crystal filter, ANL, BFO, IF output jack for connection of a PAN-adaptor, S-meter, power source from an outboard 28 volt dynamotor, unit was designed for military aircraft use, electrically very similar to the SX-28 but physically radically different, audio output for headphone only.

• Source of data
• Radios by hallicrafters

• Author
• Model page created by a member from D. See "Data change" for further contributors.
