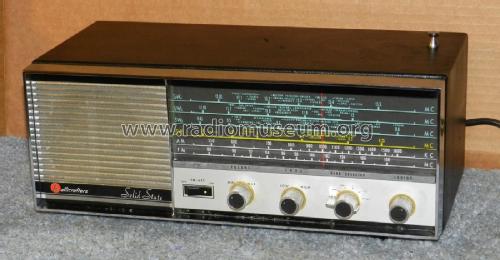

S-214 (Japan 304)

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data
Forum
Pictures
Collections

  • Year
  • 1967
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 121652

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, more than 2 SW bands plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: S-214 - Hallicrafters, The; Chicago,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • Mediumwave and four SW bands (49, 31, 25, 19m), FM, telescopic and internal ferrite rod antenna.

    Made in Japan 304

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
