S-56

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1948

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
43901

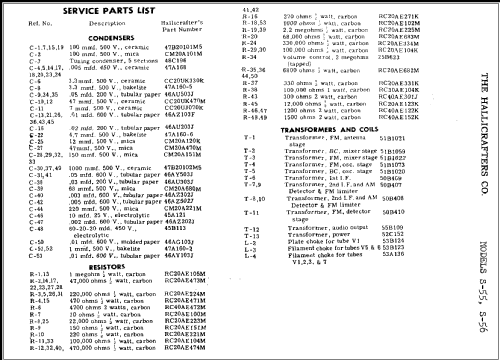

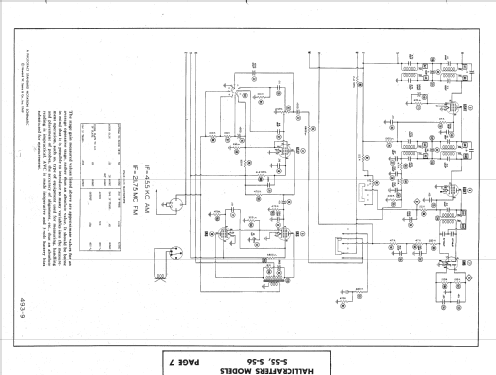

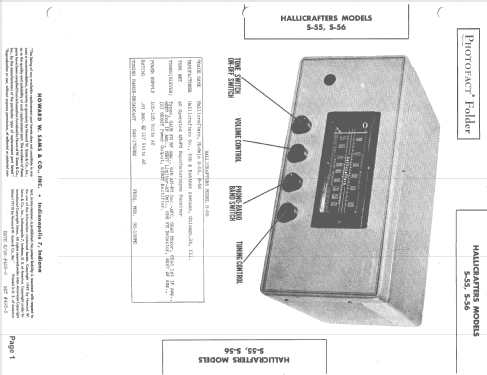

Schematics

S-56; Hallicrafters, The; (ID = 288592) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288593) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288594) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288595) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288596) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288597) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288598) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288599) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 288600) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481923) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481924) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481925) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481926) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481927) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481928) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481929) Radio — Hallicrafters, The; S-56 (3)

S-56; Hallicrafters, The; (ID = 1481930) Radio — Hallicrafters, The; S-56 (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
11

Valves / Tubes
6AU6 6BA6 6BA6 6SH7 6SH7 6H6 6J6 6SJ7 6K6GT 6K6GT 5Y3GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 105-125 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: S-56 - Hallicrafters, The; Chicago,

Shape
Chassis only or for «building in»

Notes
The same as the S-55 but sold as a chassis only for custom installation in the user's cabinet.

Price in first year of sale
110.00 $

External source of data
Ernst Erb

Source of data
The Radio Collector's Directory and Price Guide 1921 - 1965

Circuit diagram reference
Rider's Perpetual, Volume 19 = 1949 and before

Mentioned in
Radios by hallicrafters
