S-58

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1949

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
43902

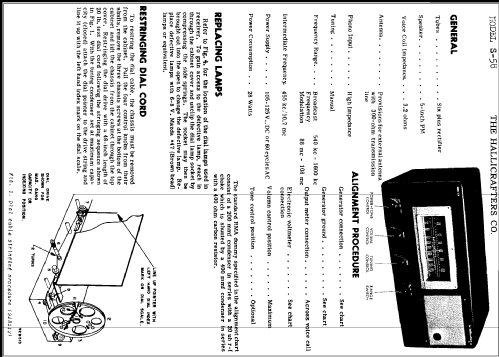

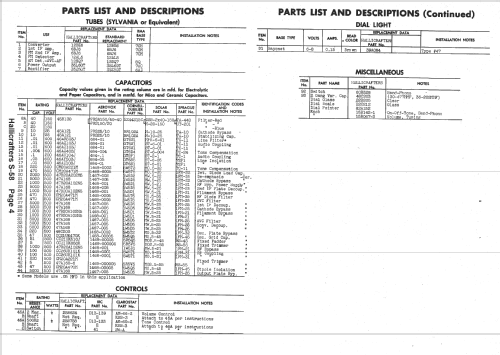

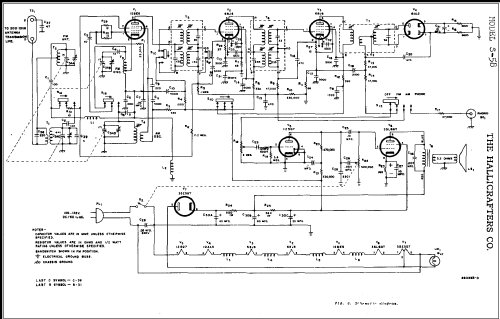

Schematics

S-58; Hallicrafters, The; (ID = 288602) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 288603) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 288604) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 288605) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 288606) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 288607) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509485) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509487) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509488) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509489) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509490) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509491) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509492) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1509493) Radio — Hallicrafters, The; S-58 (3)

S-58; Hallicrafters, The; (ID = 1317336) Radio — Hallicrafters, The; S-58 (1)

S-58; Hallicrafters, The; (ID = 1509484) Radio — Hallicrafters, The; S-58 (2)

S-58; Hallicrafters, The; (ID = 288601) Radio — Hallicrafters, The; S-58 (2)

S-58; Hallicrafters, The; (ID = 1317337) Radio — Hallicrafters, The; S-58 (1)

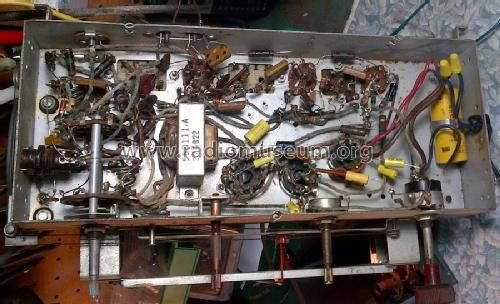

Some of the components are not original.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
12BE6 6BJ6 6BJ6 12AL5 12SQ7 35L6GT 35Z5GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
AC/DC-set / 105-125 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

Material
Metal case

from Radiomuseum.org
Model: S-58 - Hallicrafters, The; Chicago,

Shape
Tablemodel, low profile (big size).

Notes
IF/FM 10.7 MHz

Price in first year of sale
60.00 $

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 19 = 1949 and before

Mentioned in
Radios by hallicrafters
