Sky Buddy S-19R 1st run

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1939–1942

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
18685

Schematics

Sky Buddy S-19R; Hallicrafters, The; (ID = 18369) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (3)

Sky Buddy S-19R; Hallicrafters, The; (ID = 18370) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (3)

Sky Buddy S-19R; Hallicrafters, The; (ID = 1482183) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (1)

Sky Buddy S-19R; Hallicrafters, The; (ID = 125545) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller cindys_basement.

Sky Buddy S-19R; Hallicrafters, The; (ID = 187799) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 187800) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 187801) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

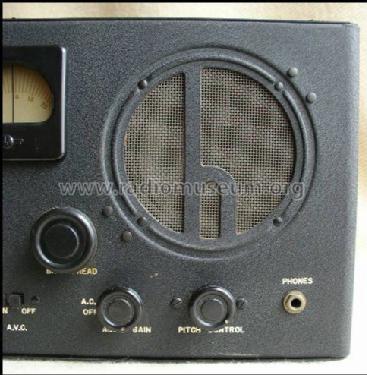

Sky Buddy S-19R; Hallicrafters, The; (ID = 187802) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 187803) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 187804) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 187805) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 187806) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
eBay seller: wevtt (USA). #5872768176

Sky Buddy S-19R; Hallicrafters, The; (ID = 266957) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)
By courtesy of William Kendrick, USA

Sky Buddy S-19R; Hallicrafters, The; (ID = 1408513) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (2)

Sky Buddy S-19R; Hallicrafters, The; (ID = 1482184) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (1)
Frontansicht

Sky Buddy S-19R; Hallicrafters, The; (ID = 1482185) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (1)
Rückansicht, keine Rückwand

Sky Buddy S-19R; Hallicrafters, The; (ID = 1482186) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (1)

Sky Buddy S-19R; Hallicrafters, The; (ID = 1823087) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (1)

Sky Buddy S-19R; Hallicrafters, The; (ID = 2047324) Amateur-R — Hallicrafters, The; Sky Buddy S-19R (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
6K8 6K7G 6Q7 76 41 80

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast, Short Wave(s) and Police.

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Metal case

from Radiomuseum.org
Model: Sky Buddy S-19R [1st run] - Hallicrafters, The; Chicago,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
17.5 x 8.5 x 8.5 inch / 445 x 216 x 216 mm

Notes
Coverage 0.540-1.7, 1.7-5.5, 5.5-17, 16-46 MHz. Receives AM, CW (with BFO). DC operation possible with either two batteries (6V storage and 180 dry batt.), or a single 6 V storage battery and vibrapack.
Later variation has a toggle switch for the standby-receive function instead of a slide switch.

Net weight (2.2 lb = 1 kg)
10.1 kg / 22 lb 3.9 oz (22.247 lb)

Price in first year of sale
30.00 $

External source of data
E. Erb 3-907007-36-0

Source of data
Communications Receivers

Circuit diagram reference
Rider's Perpetual, Volume 10 = 1939 and before

Mentioned in
Radio Shack Catalog (1940, page 4)
