• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1970–1973

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 79454

• Number of Tubes
• 0

• Valves / Tubes
• 12BE6 6BA6 12AV6 50C5

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 105-125 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Metal case

• from Radiomuseum.org

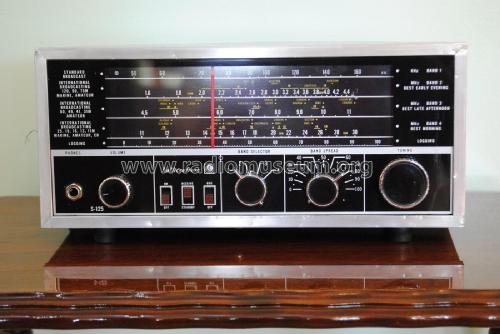

• Model: Star Quest II S-125 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Notes
• Coverage:0.55-1.6, 1.6-4.4, 4.5-11, 11-30MHz, 6 Diodes, virtually identical to the S-120A.

• Price in first year of sale
• 60.00 $

• Source of data
• Radios by hallicrafters

• Mentioned in
• Shortwave Receivers - Past & Present (3rd ed.)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
