• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1938/1939

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 18682

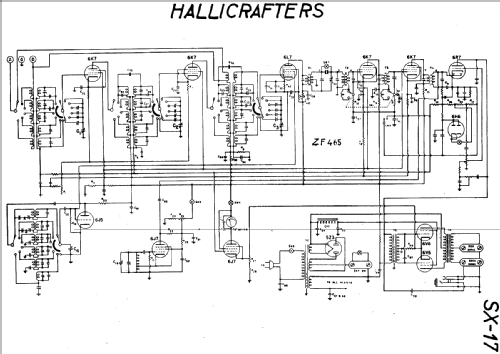

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6K7 6K7 6L7 6J5 6K7 6K7 6R7 6J7 6J7 6J5 6V6 6V6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 13 W (18 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Super Skyrider S-17 [Early] - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Notes
• Coverage: 0.54-62MHz in 6 Bands, Same as S/SX-16 except adds noise limiter and additional rf amplifier stage

• Price in first year of sale
• 126.00 $

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Communications Receivers

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before
