• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1956–1961

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 79143

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6CB6 6AU6 6C4 6BA6 6BA6 12AT7 6C4 6BA6 6BJ7 6SC7 6K6 6AU6 5Y3 0A2

• Main principle
• Superhet, double/triple conversion; ZF/IF 1650/50,75 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 105-125 / 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

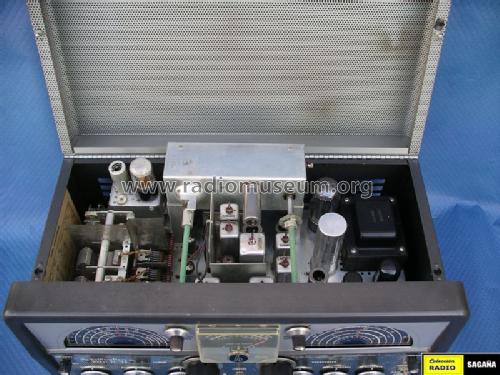

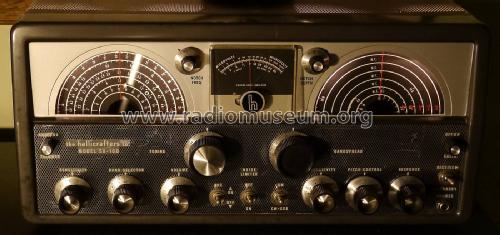

• Model: SX-100 [Mark 2] - Hallicrafters, The; Chicago,

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 467 x 216 x 269 mm / 18.4 x 8.5 x 10.6 inch

• Notes
• Coverage: 0.538-1.58, 1.72-4.9, 4.6-13, 12-34MHz, 2nd IF=50.75KHz, 50KHz L/C-Filter, Reception Gap from 1.58-1.72MHz, DC Operation also by a 6 Volt Storage Battery and "B" Batteries or Vibrapack, there were some minor electrical and cosmetic differences between the Mark 1, 1A and Mark 2 such as slightly different Style of Knobs and 2nd IF.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 295.00 $

• Source of data
• Communications Receivers

• Mentioned in
• Radios by hallicrafters (Shortwave Receivers Past & pres.)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
