SX-140

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1960–1965

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
79543

Schematics

SX-140; Hallicrafters, The; (ID = 2943918) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943919) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943920) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943921) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943922) Amateur-R — Hallicrafters, The; SX-140 (3)

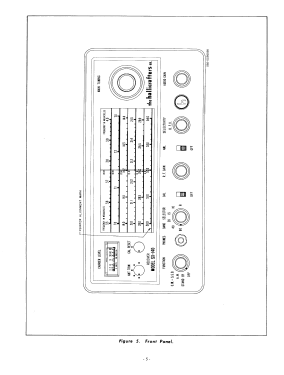

SX-140; Hallicrafters, The; (ID = 2943923) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943924) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943925) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943926) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943927) Amateur-R — Hallicrafters, The; SX-140 (3)

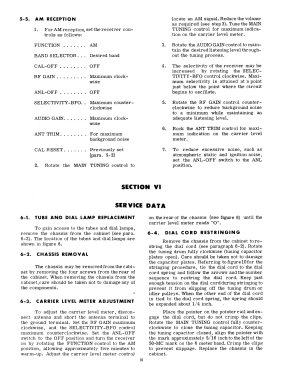

SX-140; Hallicrafters, The; (ID = 2943928) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943930) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943929) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943931) Amateur-R — Hallicrafters, The; SX-140 (3)

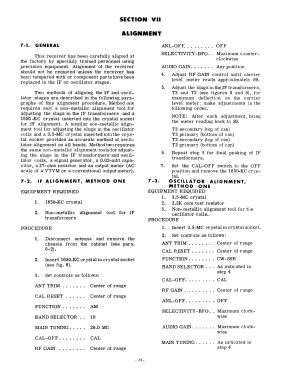

SX-140; Hallicrafters, The; (ID = 2943932) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943933) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943934) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943935) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943936) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2943937) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 620598) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2080987) Amateur-R — Hallicrafters, The; SX-140 (3)

SX-140; Hallicrafters, The; (ID = 2052800) Amateur-R — Hallicrafters, The; SX-140 (1)

SX-140; Hallicrafters, The; (ID = 620248) Amateur-R — Hallicrafters, The; SX-140 (1)

SX-140; Hallicrafters, The; (ID = 266925) Amateur-R — Hallicrafters, The; SX-140 (2)
By courtesy of William Kendrick, USA

SX-140; Hallicrafters, The; (ID = 266926) Amateur-R — Hallicrafters, The; SX-140 (2)
By courtesy of William Kendrick, USA

SX-140; Hallicrafters, The; (ID = 266927) Amateur-R — Hallicrafters, The; SX-140 (2)
By courtesy of William Kendrick, USA

SX-140; Hallicrafters, The; (ID = 905174) Amateur-R — Hallicrafters, The; SX-140 (1)

SX-140; Hallicrafters, The; (ID = 1651853) Amateur-R — Hallicrafters, The; SX-140 (2)

SX-140; Hallicrafters, The; (ID = 1651854) Amateur-R — Hallicrafters, The; SX-140 (2)

SX-140; Hallicrafters, The; (ID = 1651855) Amateur-R — Hallicrafters, The; SX-140 (2)

SX-140; Hallicrafters, The; (ID = 1672246) Amateur-R — Hallicrafters, The; SX-140 (2)

SX-140; Hallicrafters, The; (ID = 1695930) Amateur-R — Hallicrafters, The; SX-140 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
6AZ8 6U8 6BA6 6T8 6AW8A

Main principle
Superheterodyne (common); ZF/IF 1650 kHz

Wave bands
Short Wave (SW only)

Power type and voltage
Alternating Current supply (AC) / 105-125 Volt

Loudspeaker
- This model requires external speaker(s).

Material
Metal case

from Radiomuseum.org
Model: SX-140 - Hallicrafters, The; Chicago,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
340 x 210 x 188 mm / 13.4 x 8.3 x 7.4 inch

Notes
Coverage: Ham-Bands plus 6 meter band, regen IF-filter, matches the model HT-40 transmitter, Model SX-140K, K- means Kit version that was sold for 105 USD

Net weight (2.2 lb = 1 kg)
6.1 kg / 13 lb 7 oz (13.436 lb)

Price in first year of sale
125.00 $

Source of data
Communications Receivers

Mentioned in
Radios by hallicrafters

Literature/Schematics (1)
Shortwave Receivers - Past & Present (3rd ed.)

Literature/Schematics (3)

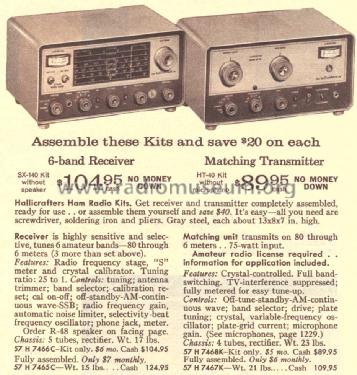

Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1231. (Order=57G 7465C))

Literature/Schematics (4)
Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1248. Spring/Summer 1963, page 1276.)

Author
Model page created by a member from D. See "Data change" for further contributors.
