SX-146

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1965–1969

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
79542

Schematics

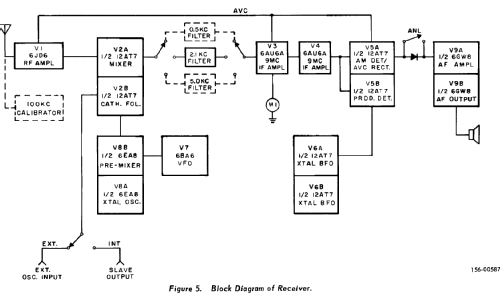

SX-146; Hallicrafters, The; (ID = 1422474) Amateur-R — Hallicrafters, The; SX-146 (3)

SX-146; Hallicrafters, The; (ID = 1422476) Amateur-R — Hallicrafters, The; SX-146 (3)

SX-146; Hallicrafters, The; (ID = 1422479) Amateur-R — Hallicrafters, The; SX-146 (3)

SX-146; Hallicrafters, The; (ID = 1422483) Amateur-R — Hallicrafters, The; SX-146 (3)

SX-146; Hallicrafters, The; (ID = 2038826) Amateur-R — Hallicrafters, The; SX-146 (1)

SX-146; Hallicrafters, The; (ID = 2038828) Amateur-R — Hallicrafters, The; SX-146 (1)

SX-146; Hallicrafters, The; (ID = 2038829) Amateur-R — Hallicrafters, The; SX-146 (1)

SX-146; Hallicrafters, The; (ID = 2038827) Amateur-R — Hallicrafters, The; SX-146 (1)

SX-146; Hallicrafters, The; (ID = 537171) Amateur-R — Hallicrafters, The; SX-146 (1)
Hallicrafters_Receiver_Model_SX-146

SX-146; Hallicrafters, The; (ID = 537173) Amateur-R — Hallicrafters, The; SX-146 (1)
Hallicrafters_RX_Model_SX-146_Telaio

SX-146; Hallicrafters, The; (ID = 537172) Amateur-R — Hallicrafters, The; SX-146 (1)
Hallicrafters_RX_Model_SX-146_Telaio-Front.

SX-146; Hallicrafters, The; (ID = 172903) Amateur-R — Hallicrafters, The; SX-146 (2)
Q= prospectus

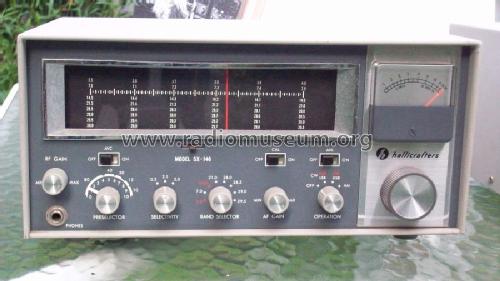

SX-146; Hallicrafters, The; (ID = 1259313) Amateur-R — Hallicrafters, The; SX-146 (1)

SX-146; Hallicrafters, The; (ID = 1347549) Amateur-R — Hallicrafters, The; SX-146 (1)

SX-146; Hallicrafters, The; (ID = 1347550) Amateur-R — Hallicrafters, The; SX-146 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
9

Valves / Tubes
6JD6 12AT7 6AU6A 6AU6A 12AT7 12AT7 6GW8 6BA6 6EA8

Main principle
Superheterodyne (common); ZF/IF 9000 kHz

Wave bands
Short Wave (SW only)

Power type and voltage
Alternating Current supply (AC) / 105-125 Volt

Loudspeaker
- For headphones or amp.

Power out
0.75 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: SX-146 - Hallicrafters, The; Chicago,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
333 x 279 x 149 mm / 13.1 x 11 x 5.9 inch

Notes
Coverage: only Ham-Bands, Crystal Lattice Filter, 3 SI-Diodes, matches the HT-46 transmitter.

Net weight (2.2 lb = 1 kg)
8.2 kg / 18 lb 1 oz (18.062 lb)

Price in first year of sale
270.00 $

Source of data
Communications Receivers
