- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1954–1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 80862

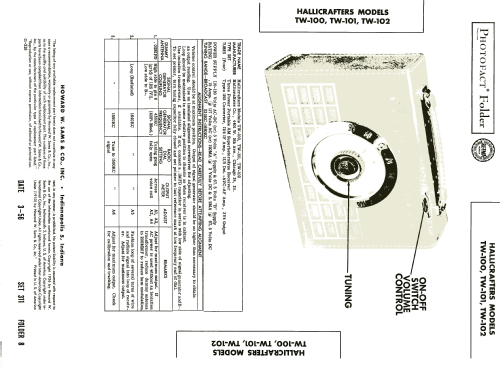

Sams photofact set 311 folder 8 date 3-56.
Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 120/90/7.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: TW-101 - Hallicrafters, The; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Selenium Rectifier, difference between TW-100, TW-101 and TW-102 is the colour of the case.
The HALLICRAFTERS model TW-101 is a Three Power Portable AM Superheterodyne Receiver.
- Price in first year of sale
- 30.00 $
- Source of data
- Radios by hallicrafters
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 16, 1956
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 311 Folder 8 Dated 3-56)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
