- Country
- United States of America (USA)
- Manufacturer / Brand
- Halson Radio Mfg. Co.; New York City (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 43952

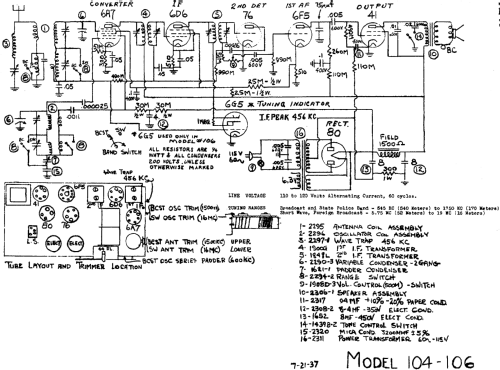

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 40-AIX - Halson Radio Mfg. Co.; New
- Notes
- BC (545-1750 kHz) and SW (5.75-19.0 MHz) bands. Same schematic as model 104/106 with 6K8G instead of 6A7. Tube layout is different.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
