Preamplificatore - Attenuatore di Antenna HC 3 AP
Ham Center di Pizzirani P. & C.s.a.s; Borgonuovo di Pontecchio Marconi (BO)
- Country
- Italy
- Manufacturer / Brand
- Ham Center di Pizzirani P. & C.s.a.s; Borgonuovo di Pontecchio Marconi (BO)
- Year
- 1982 ??
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 342285
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Preamplificatore - Attenuatore di Antenna HC 3 AP - Ham Center di Pizzirani P. & C
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Preamplificatore attenuatore di antenna operante sulle frequenze 7 - 14 - 21 - 28 MHz (40 - 20 - 15 - 10 metri).
Guadagno 20 ÷ 25 dB.
Sintonia a Varicap ± 1 MHz dal centro banda.
Attenuazione: 4 step -10, -20, -30, -40 dB.
- Price in first year of sale
- 160,000.00 ITL
- Mentioned in

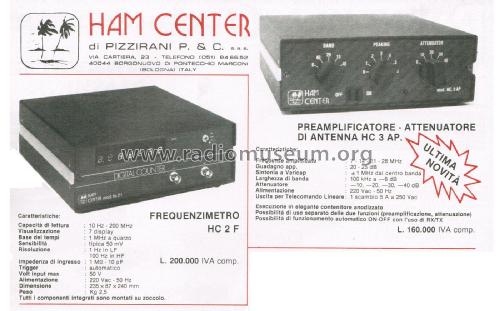

- -- Original prospect or advert (“Radio Rivista” organo ufficiale dell’ARI Italia, numero 2, febbraio 1982.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
