Multi-Function Osciloscope HM1004-2

• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1998

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 278048

• Picture

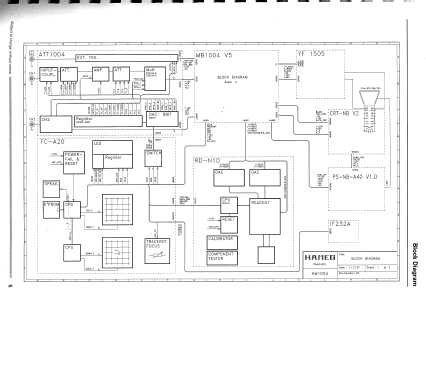

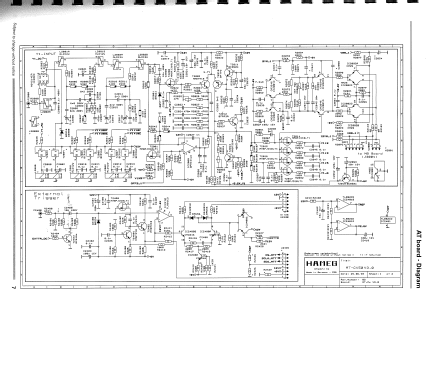

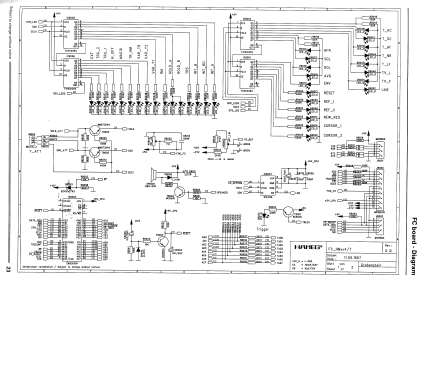

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D14-375GH/123

• Number of Transistors
• 174

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Multi-Function Osciloscope HM1004-2 - HAMEG GmbH, Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.1 x 4.9 x 14.8 inch / 282 x 124 x 376 mm

• Notes

• Oscilloscope Multi

  - Function 100 MHz
  - 2 Chanels
  - Comunication RS-232
  - Readout & Cursor
  - Tester Componets
  - Automatic Peak to Peak
  - Alternate Trigger



• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
