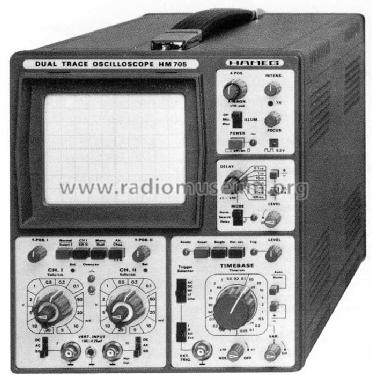

Oscilloscope HM705

• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1981 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 131042

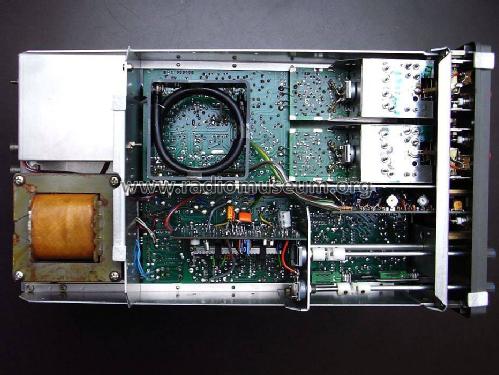

• Picture

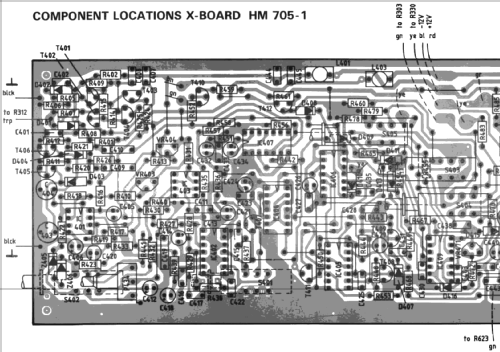

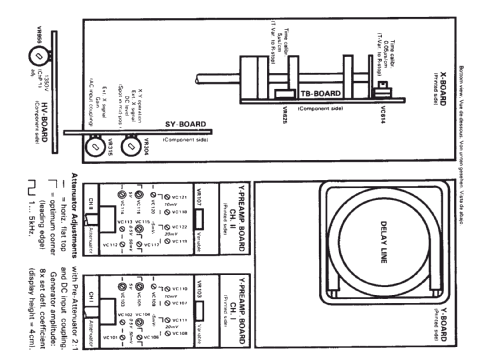

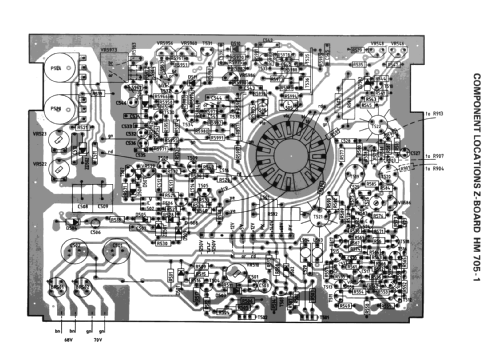

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D14-654GH

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope HM705 - HAMEG GmbH, Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 212 x 237 x 380 mm / 8.3 x 9.3 x 15 inch

• Notes
• 70-MHz-Oszilloskop.
  Y: 2 Kanäle, 0-70 MHz, max. 2 mV/cm, Verzögerungsleitung.
  X: 2,5 s/cm -5 ns/cm inkl. Dehnung ×10, verzögerbare Zeitbasis; Triggerung bis 100 MHz, variable Hold-off-Zeit.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 2,464.00 DM

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Franz Harder. See "Data change" for further contributors.
