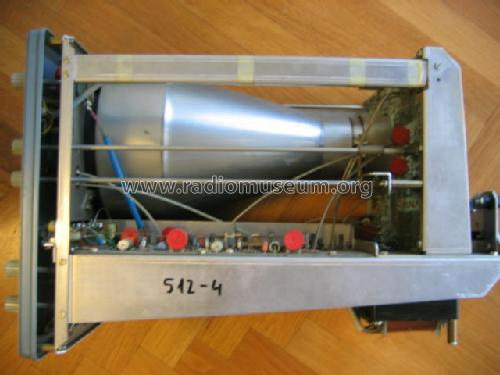

Oscilloscope HM512-4

• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1973

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 130844

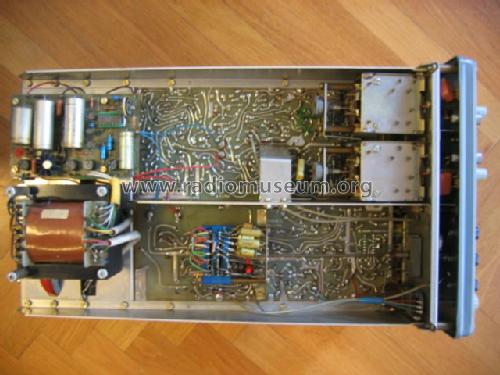

• Picture

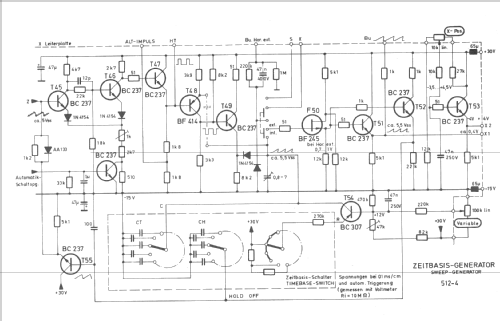

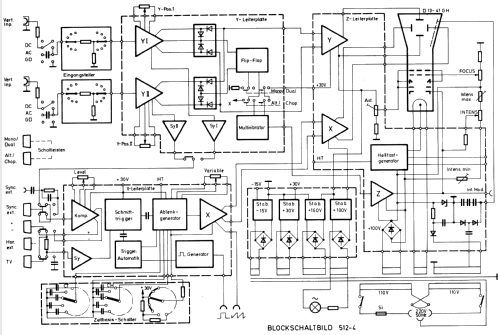

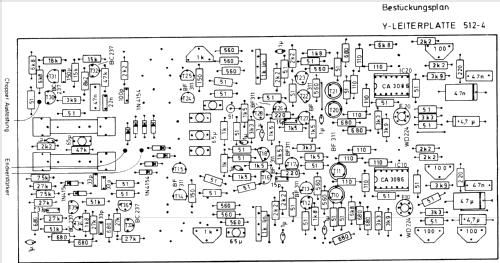

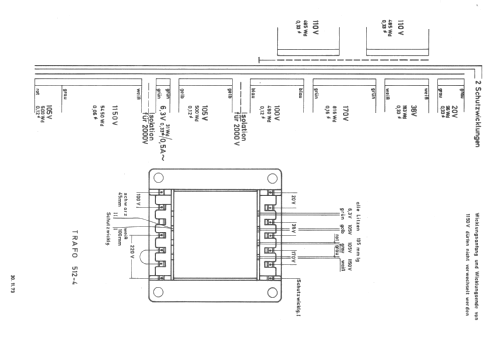

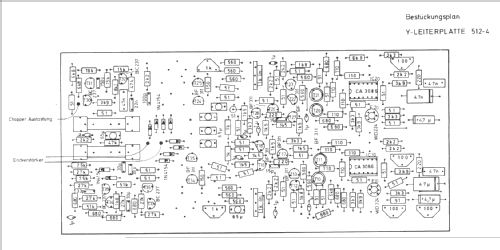

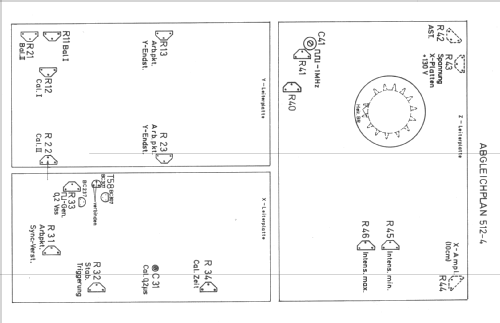

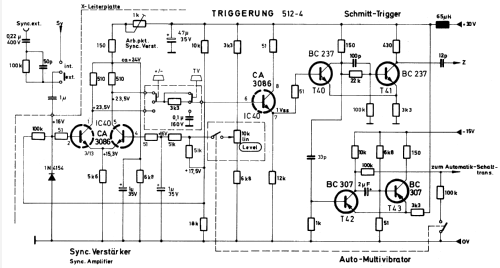

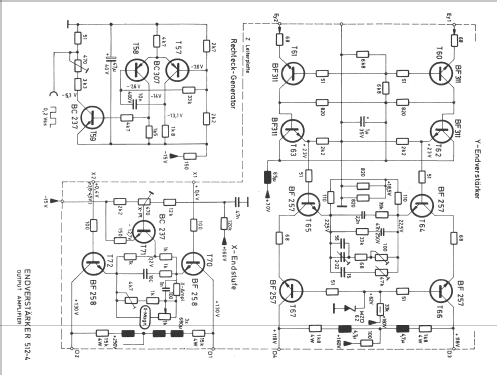

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D13-41GH

• Number of Transistors
• 68

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 110; 220V Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope HM512-4 - HAMEG GmbH, Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 255 x 380 mm / 8.3 x 10 x 15 inch

• Notes

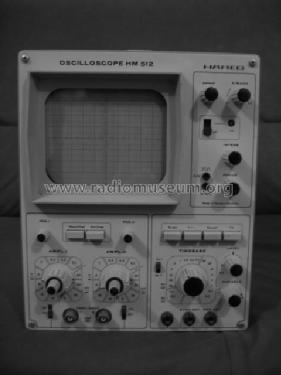

• Hameg Two-Channel-Oscilloscope HM512-4.
  0-20 MHz (-3 dB), 5 mV_ss/cm to 20 V_ss/cm, input impedance 1 MOhm/30 pF, linearity 2 %, screen 8×10 cm.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 1,554.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Sinisa Trlin. See "Data change" for further contributors.
