Oscilloscope HM307-2
HAMEG GmbH, Frankfurt
- Country
- Germany
- Manufacturer / Brand
- HAMEG GmbH, Frankfurt
- Year
- 1977
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 224122

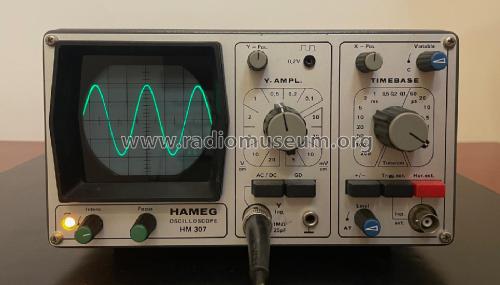

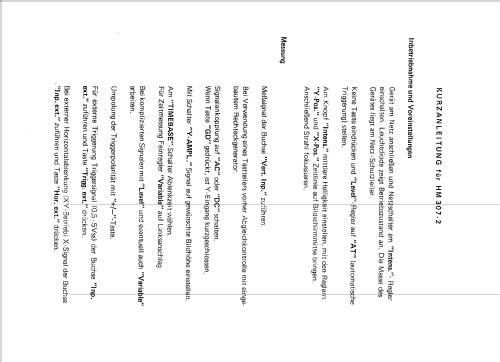

HAMEG HM 307-2
HAMEG HM 307-2
HAMEG HM 307-2
HAMEG HM 307-2
HAMEG HM 307-2
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 3RP1A
- Number of Transistors
- 32
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 237 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope HM307-2 - HAMEG GmbH, Frankfurt
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 212 x 114 x 265 mm / 8.3 x 4.5 x 10.4 inch
- Notes
-
Y-Bandbreite DC - 10 MHz; X-Bandbreite 1 Hz - 1 MHz; Zeitbasis 0,2 s - 0,5 µs/cm; LPS-Triggerung; elektronische Stabilisierung aller wichtigen Spannungen einschl. Hochspannung.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Hans-Dieter Haase † 5.2.18. See "Data change" for further contributors.
