• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1995 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 357915

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

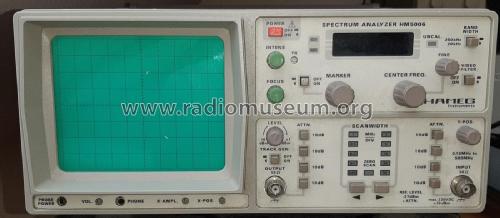

• Model: Spectrum Analyzer HM 5006 - HAMEG GmbH, Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 285 x 125 x 380 mm / 11.2 x 4.9 x 15 inch

• Notes

• Durchgehender Frequenzbereich von 0,5 MHz bis 500 MHz.
  4-stellige Digitalanzeige für Mitten- und Marker-Frequenz (Auflösung: 0,1 MHz).
  Amplitudenbereich —100 bis +13 dBm; 12,5 kHz-, 250 kHz- und Video-Filter.
  Tracking Generator (nur im HM 5006)
  Durchgehender Frequenzbereich von 0,1 MHz bis 500 MHz.
  Ausgangsspannung +1 dBm bis -50 dBm (an 50Q).

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heimo Gruber. See "Data change" for further contributors.
