1,6GHz Counter HM8021-4

• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1998 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 131100

• Picture
• Schematics

Previous Next

Previous Next

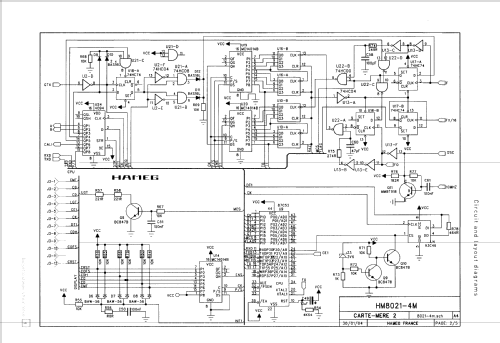

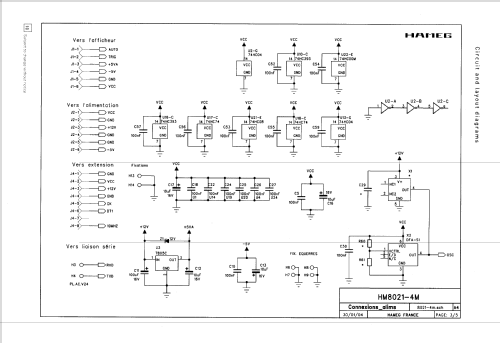

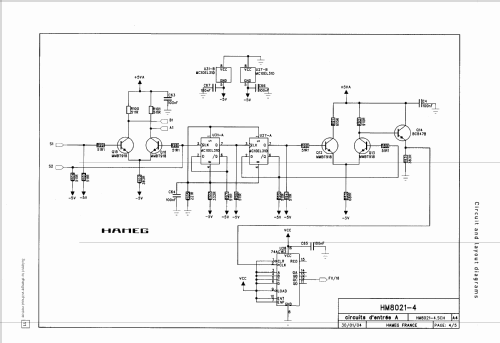

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: 1,6GHz Counter HM8021-4 - HAMEG GmbH, Frankfurt

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 135 x 68 x 228 mm / 5.3 x 2.7 x 9 inch

• Notes
• Frequenzbereich 0 Hz bis 1,6 GHz, 10 MHz Zeitbasis mit 0,5 ppm Stabilität (TCXO).
  Eingang A: Eingangsimpedanz 1 Mohm, maximale Empfindlichkeit 20 mV eff.
  Eingang C: Eingangsimpedanz 50 Ohm, maximale Empfindlichkeit 30 mV eff.
  Zeitintervallauflösung bis 10 ps, Offsetbetrieb im gesamten Messbereich, Gate-Eingang. Zum Betrieb ist das Grundgerät HM8001-2 erforderlich.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)
