• Country
• United States of America (USA)

• Manufacturer / Brand
• Hammarlund Mfg. Co. Inc.; New York, NY

• Year
• 1956–1958

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 108238

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BZ6 6BE6 6C4 12AX7 6BA6 6BA6 6AL5 6AQ5 5Y3 0B2

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

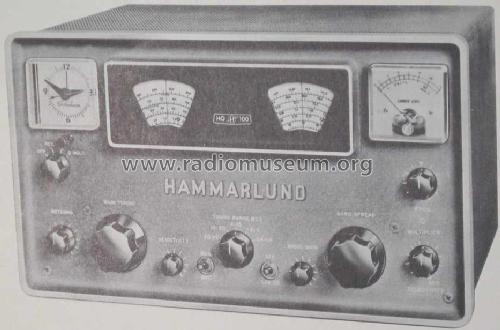

• Model: HQ-100 - Hammarlund Mfg. Co. Inc.; New

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 413 x 241 x 233 mm / 16.3 x 9.5 x 9.2 inch

• Notes
• The Hammarlund HQ-100 covers 0,54 - 30 MHz in 4 bands (0.54-1.6 / 1.6-4 / 4-10 / 10-30 MHz), AM, CW (BFO);
  Noise limiter, bandwidths 6 and 0.1 - 3 kHz by mans of Q multiplier circuit.
  Optional XC-455 crystal controlled BFO for USB/LSB reception (16 US$), optional XC-100 crystal calibrator (18 US$), only one of them can be installed within the cabinet; optional clock / timer (Unit with timer sold as HQ-100C), optional S-100 external speaker. The BFO used the Q multiplier au to serial # 1199, from serial # 1200 there was a separate BFO added. There was also a separate BFO kit for retrofitting the earlier sets available. See also HQ-100a with and without 5Y3 rectifier and another HQ-100A for 1962-1964 with HQ100A spelled out on the front panel. Hammarlund used a 5y3 rectifier in the early run and at the tail end switched over to the solid state rectifier as Hammarlund was using at the same time in the Hq 170a's & the Hq 180a's. Those with the solid state are VERY rare.

• Net weight (2.2 lb = 1 kg)
• 13.6 kg / 29 lb 15.3 oz (29.956 lb)

• Price in first year of sale
• 169.00 $

• Source of data
• Shortwave Receivers - Past & Present (3rd ed.)

• Mentioned in
• Communications Receivers

• Literature/Schematics (1)
• The radio amateurs handbook 1957

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
