HQ-One Eighty-A HQ-180A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hammarlund Mfg. Co. Inc.; New York, NY

• Year
• 1963–1972

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 121656

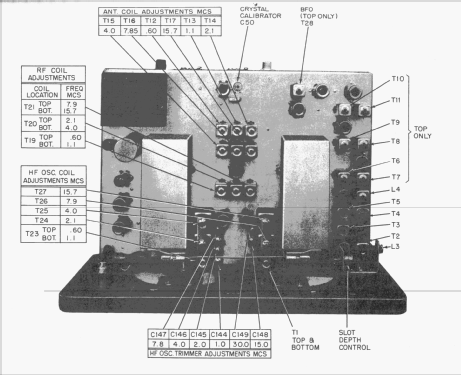

• Picture

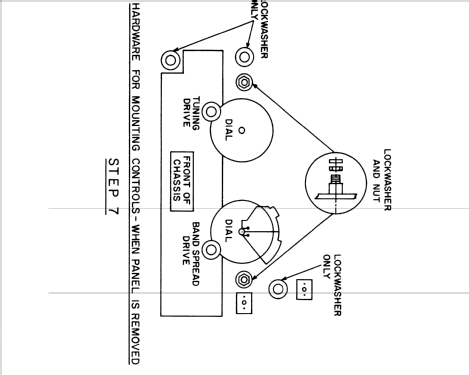

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BZ6 6BE6 6C4 6BE6 6BA6 6BA6 6BE6 6BA6 6BA6 6BV8 12AU7 6AL5 12AU7 6AV6 6AQ5 0A2 6BZ6

• Main principle
• Superhet, double/triple conversion; ZF/IF 3035/455/6 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: HQ-One Eighty-A HQ-180A - Hammarlund Mfg. Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 19 x 10.5 x 13 inch / 483 x 267 x 330 mm

• Notes
• IF-Freq. 3035/455/60 kHz. Successor of HQ-180. Features solid state power supply, 230 VAC, three position BFO, accessory socket, 500 ohms line output, separate filament transformer for stable OSC and mixer.

• Net weight (2.2 lb = 1 kg)
• 17.2 kg / 37 lb 14.2 oz (37.885 lb)

• Mentioned in
• Shortwave Receivers - Past & Present (3rd ed.)

• Literature/Schematics (1)
• -- Original-techn. papers.
