Frequenzzähler PFZ1
Hansa; Wilhelmshaven
- Country
- Germany
- Manufacturer / Brand
- Hansa; Wilhelmshaven
- Year
- 1982–1985
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 134918

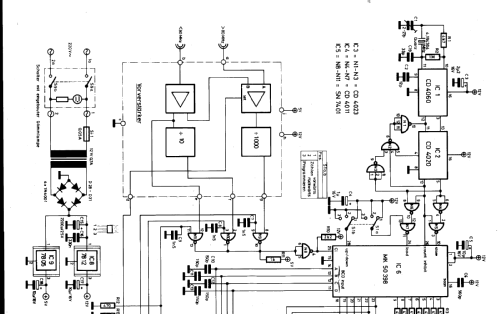

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Frequenzzähler PFZ1 - Hansa; Wilhelmshaven
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 240 x 80 x 250 mm / 9.4 x 3.1 x 9.8 inch
- Notes
- Hansa Frequenzzähler PFZ 1.
1 Gigahertz Vorwärts-Rückwärts-Zählung, Summen- und Differenzfrequenzen, Empfindlichkeit typ. 20 mV, programmierbarer Kodierschalter.
Wurde als Bausatz oder Fertiggerät angeboten.
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
