Hanseatic K 91092
Hanseatic ,(Marke)
- Country
- Germany
- Manufacturer / Brand
- Hanseatic ,(Marke)
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 342006
Seriennummer 752732
Sereinnummer 752732 , Batteriefach fehlt
Seriennummer 752732
- Number of Transistors
- 9
- Semiconductors
- 2SA76 OC615 2SA77 2SA77 2SA77 2SB54 2SB54 2SB202 2SB202 1N60 1N60 1N60 1N60 1N60 E25C25
- Main principle
- Superheterodyne (common); 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 3R12: 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Hanseatic K 91092 - Hanseatic ,Marke
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 175 x 100 mm / 10.2 x 6.9 x 3.9 inch
- Notes
-
UKW 87 -100 MHz

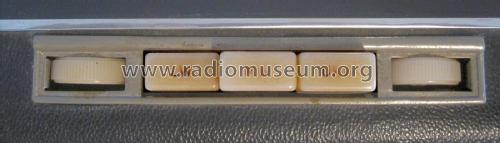

Bedienelemente v.l.n.r. Rändelpoti Lautstärke, Tastensatz LW, MW, UKW, Einstufige Tonblende mit Ausschalter per Rändelrad kombiniert.
Drehknopf ohne Untersetzung direkt mit Drehko-Achse verbunden.Hergestellt von Südfunk Apparatebau, Stuttgart, für Otto-Versand, Hamburg (Marke Hanseatic).
Siehe auch ähnliches Modell Bärbel K 91092
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
