• Country
• Australia

• Manufacturer / Brand
• Hanimex Pty, Ltd.; Brookvale (N.S.W.)

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198855

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.37 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Hanimex HR2818 - Hanimex Pty, Ltd.; Brookvale N

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2 x 7 x 3.75 inch / 51 x 178 x 95 mm

• Notes
• 3 bands: BC; FM; CB channel 1 - 40.

• Net weight (2.2 lb = 1 kg)
• 1 lb (1 lb 0 oz) / 0.454 kg

• Price in first year of sale
• 28.50 AUS $

• Mentioned in

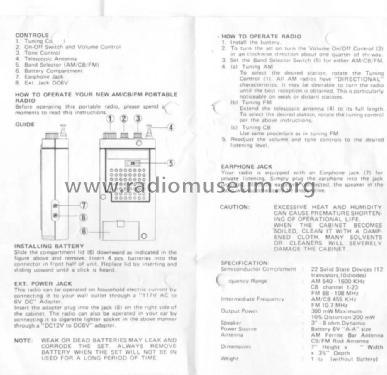

• -- Original prospect or advert

• Author
• Model page created by Pentti Lamminen. See "Data change" for further contributors.
