• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157967

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 96 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

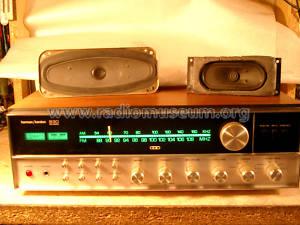

• Model: HK930 930 - Harman Kardon; New York

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 432 x 121 x 350 mm / 17 x 4.8 x 13.8 inch

• Notes
• AM/FM Stereo Receiver, 48 Watt Sinus per Kanal an 8 Ohm (1 kHz).
  Optional Nussbaumgehäuse (B/No.: CW 95).

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Price in first year of sale
• 1,788.00 DM

• Mentioned in
• Hi-Fi Jahrbuch 6, Verlag G. Braun, Karlsruhe 1972

• Literature/Schematics (1)
• Hi-Fi Jahrbuch 7, Verlag G. Braun, Karlsruhe 1975

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
