• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 181343

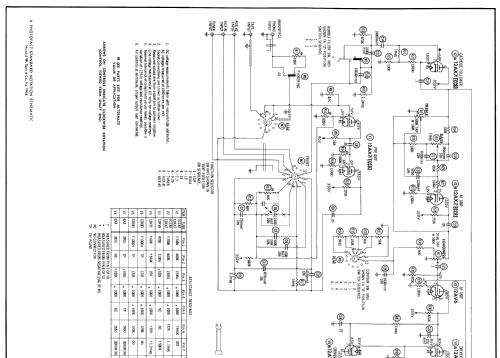

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AX7 12AX7 12AV6 12AT7 12AB5 12AB5 6X4 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105 -125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: A-120 "Melody II" - Harman Kardon; New York

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)

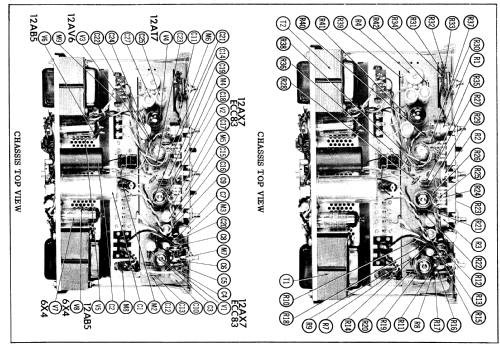

• Photofact Folder, Howard W. SAMS (Date 6-58, Set 404, Folder 7)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
