• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276922

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BK7A 6AB4 12AT7 6BA6 6BE6 6BA6 6BA6 6AU6 6AU6 6AL5 12AU7 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 10700/455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: A-310 - Harman Kardon; New York

• Shape
• Tablemodel, with any shape - general.

• Notes

• AC Operated FM - AM Superheterodyne Tuner.

• Literature/Schematics (1)

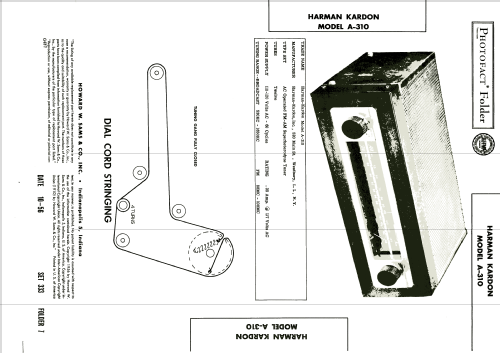

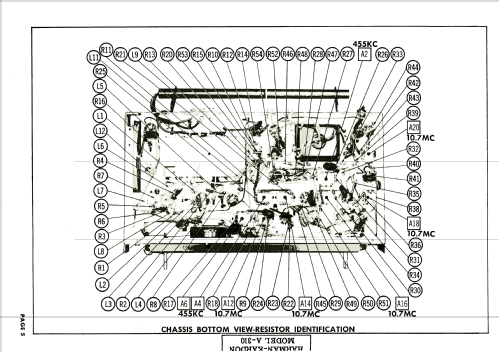

• Photofact Folder, Howard W. SAMS (Set 333 Folder 7 dated 10-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
