Audio Video Receiver AVR 350

Harman Kardon; New York

Data
Forum
Pictures
Collections

  • Year
  • 2007
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 281790

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details

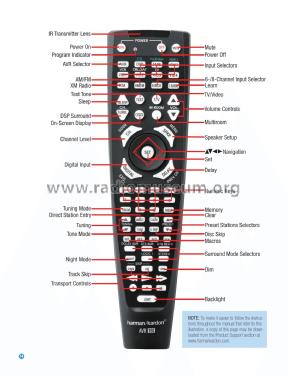

  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 385 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Audio Video Receiver AVR 350 - Harman Kardon; New York
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 165 x 382 mm / 17.3 x 6.5 x 15 inch
  • Notes

  • Harman Kardon 7.1-Channel Audio/Video Receiver Model AVR 350.
    Tuning range:
    FM 87,5 - 108 MHz
    MW 520 - 1720 kHz
    Video Section: Format NTSC
    Video Frequency Response: 10 - 8 MHz (-3dB)
    Power output: 70 watts per channel into 8Ω (stereo)
    Surround output: 55W (front), 55W (center), 55W (rear) - 385 Watts total (55 Watts x 7 )
    Frequency response: 20Hz to 20kHz
    Total harmonic distortion: 0.07%
    Input sensitivity: 200mV (line)
    Signal to noise ratio: 100dB (line)
    Speaker load impedance: 8Ω (minimum)
    Digital inputs: coaxial, optical

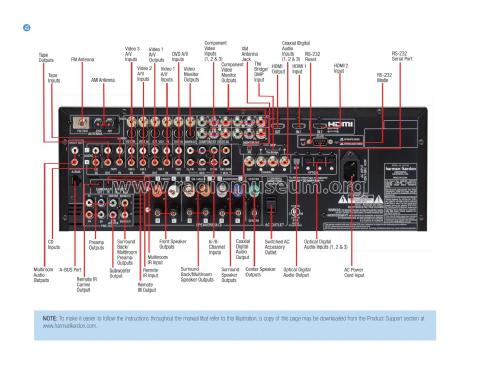

    Video Connections: HDMI, component, composite, SVHS
    Power Consumption max. 540 Watts


  • Net weight (2.2 lb = 1 kg)
  • 34.5 lb (34 lb 8 oz) / 15.663 kg
  • Mentioned in

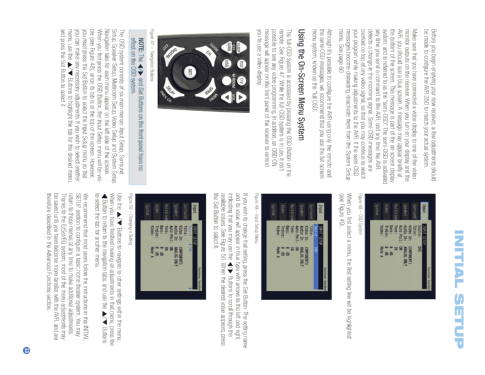

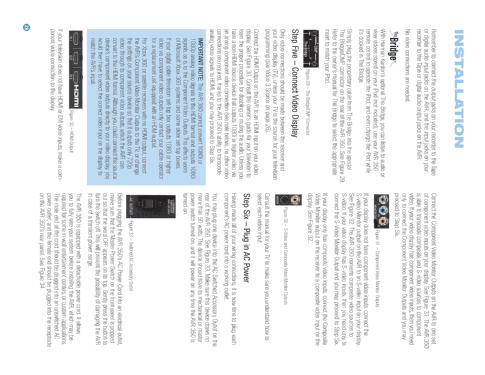

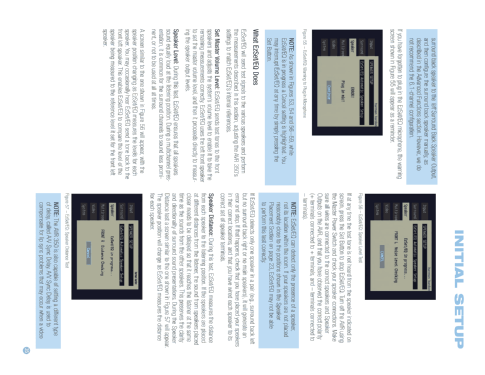

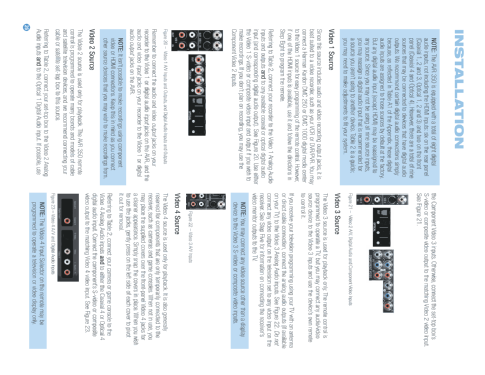

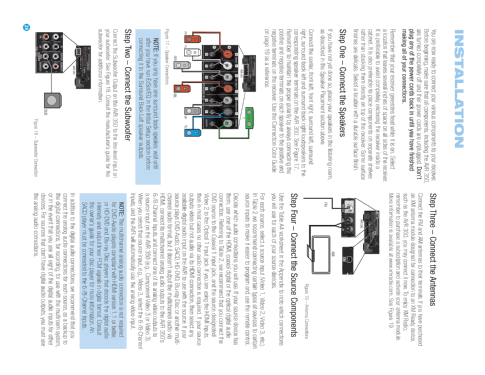

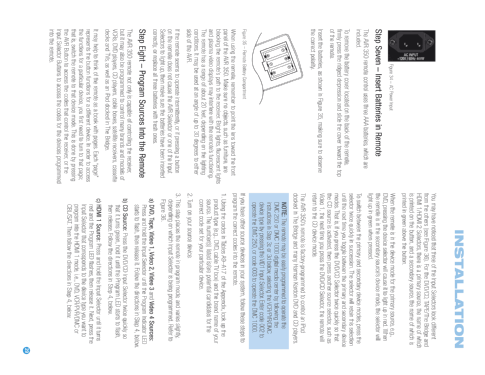

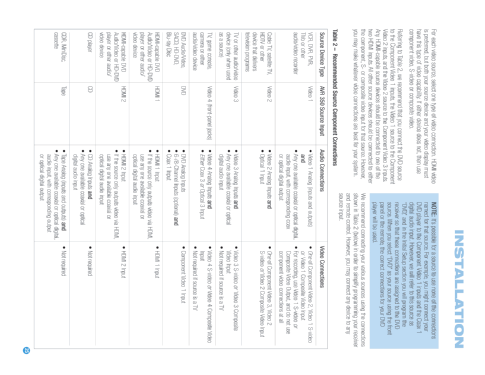

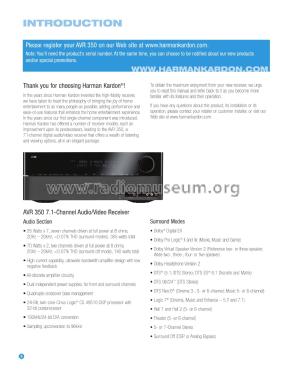

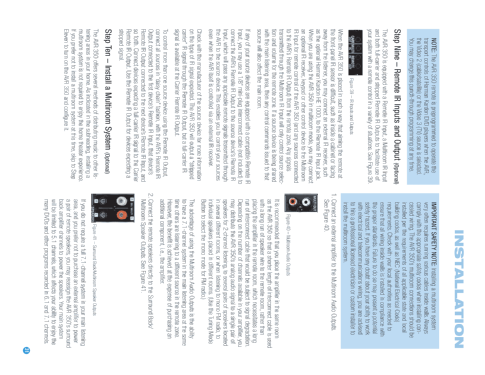

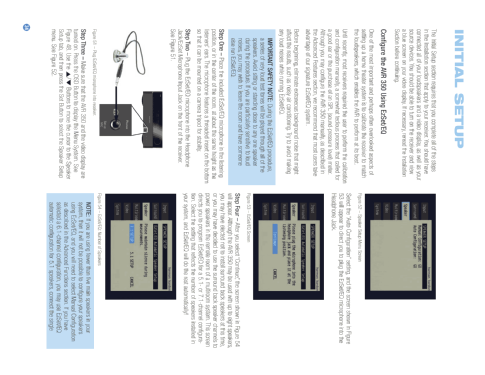

  • - - Manufacturers Literature (Owners Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
