Churchill SR-3000-M
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330482
- Number of Tubes
- 14
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Churchill SR-3000-M - Harman Kardon; New York
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 68 x 32 x 19 inch / 1727 x 813 x 483 mm
- Notes
-

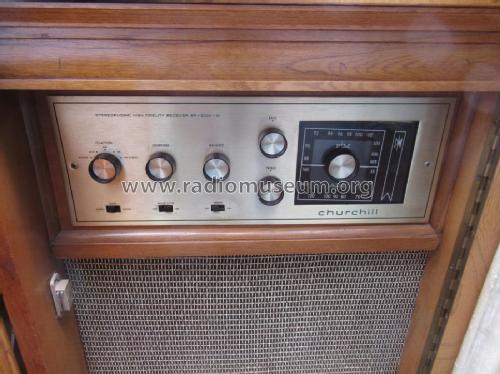

This is a AM/FM radio phonograph console manufactured by Harman Kardon with the brand name of Churchill.

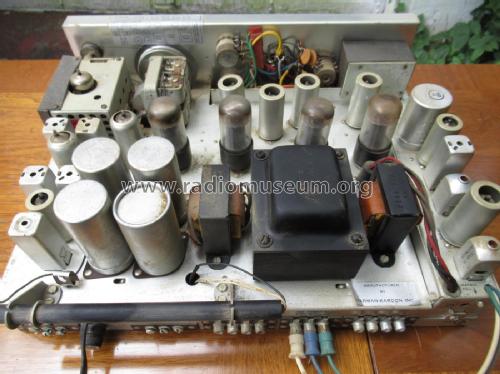

There are 14 tubes with 2 of the tubes (6C4 and 6BL8) used in the optional Churchill MX601 multiplex adapter.
The speakers are Goodmans Industries LTD (UK) 12 inch coaxial.
The turntable is a Garrard AT6.
The selling price was obtained from the original sales receipt.
- Net weight (2.2 lb = 1 kg)
- 110 lb 0 oz (110 lb) / 49.940 kg
- Price in first year of sale
- 773.00 USA
- Mentioned in
- - - Manufacturers Literature (Manufacturers Owner Manual)
- Author
- Model page created by Jon Kummer. See "Data change" for further contributors.
