• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1973–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109602

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 42

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110-127/210-250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

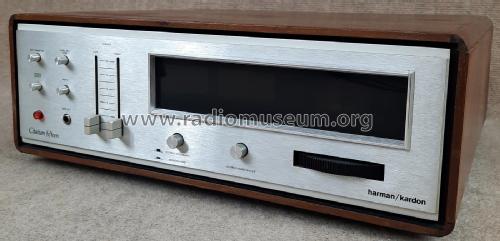

• Model: citation fifteen - Harman Kardon; New York

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 120 x 340 mm / 15.7 x 4.7 x 13.4 inch

• Notes
• sintonizzatore professionale FM stereo. frequenza 87,5-108,5 MHz. Risposta in frequenza audio 4Hz-80Khz +- 1 dB, possibilità di collegare un circuito Dolby esterno. Oltre i transistor nel circuito si trovano 3 circuiti integrati e 7 diodi Professional FM stereo tuner, frequency from 87,5 to 108,5 MHz

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)

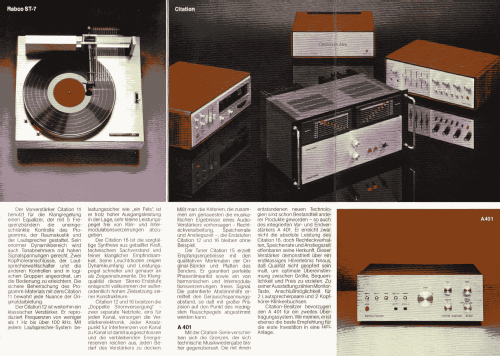

• Funk-Technik (FT) (24/1974, S. 855 / Bericht, Daten)

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
