Digital Synthesized Quartz-Locked Stereo Receiver hk580i
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 1983 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336479

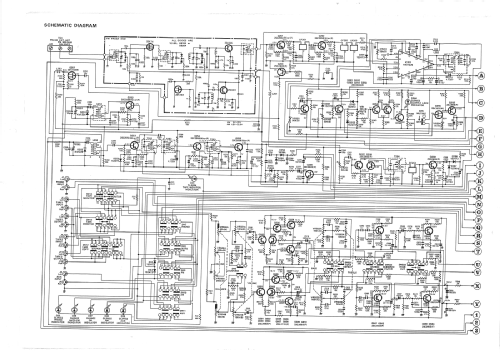

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 100; 120; 220; 240 Volt
- Power out
- 90 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Digital Synthesized Quartz-Locked Stereo Receiver hk580i - Harman Kardon; New York
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 443 x 122 x 368 mm / 17.4 x 4.8 x 14.5 inch
- Notes
-
Digital, quartz-coupled tuner.
Four presets for AM/FM.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Author
- Model page created by Dietmar Ils. See "Data change" for further contributors.
