F-250
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153521
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: F-250 - Harman Kardon; New York
- Shape
- Chassis only or for «building in»
- Notes
- The Harman Kardon Model F-250 is an AC Operated 10 Tube FM Tuner.
- Net weight (2.2 lb = 1 kg)
- 10 lb 0 oz (10 lb) / 4.540 kg
- Price in first year of sale
- 119.95 $
- Literature/Schematics (1)

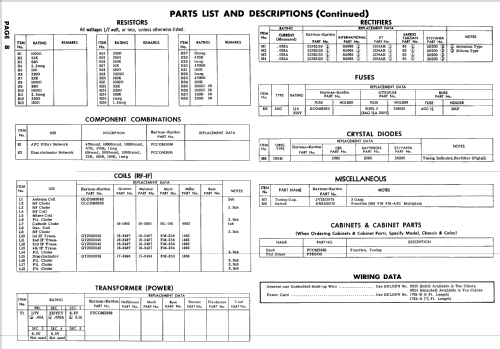

- Photofact Folder, Howard W. SAMS (Date 1-60, Set 470, Folder 13)
- Literature/Schematics (2)
- Radio Shack Catalog (1959 page 12 and 1960 page 16)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
