• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1981–1983

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 109715

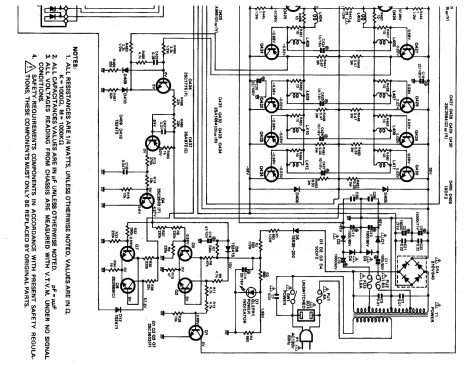

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 130 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: HK-775 Amplifier - Harman Kardon; New York

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 380 x 80 x 370 mm / 15 x 3.1 x 14.6 inch

• Notes
• Ultrawideband monophonic power amplifier. Made in Japan.
  Amplificatore di potenza, circuitazione in dc, costruito in giappone.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
