• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 2008

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253115

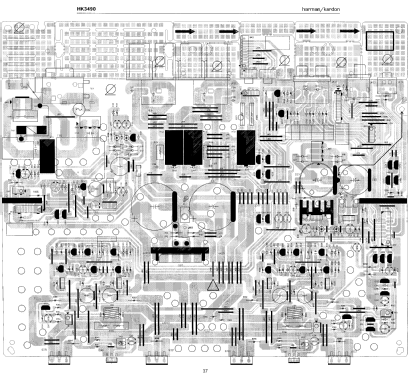

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 240 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver HK 3490 - Harman Kardon; New York

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 165 x 382 mm / 17.3 x 6.5 x 15 inch

• Net weight (2.2 lb = 1 kg)
• 11.4 kg / 25 lb 1.8 oz (25.11 lb)

• Author
• Model page created by Kent Johansson. See "Data change" for further contributors.
